SCC24 999 Day Timer Instructions
INSTRUCTIONS – SCC24 Large Digital 999 Day Count Down Timer.

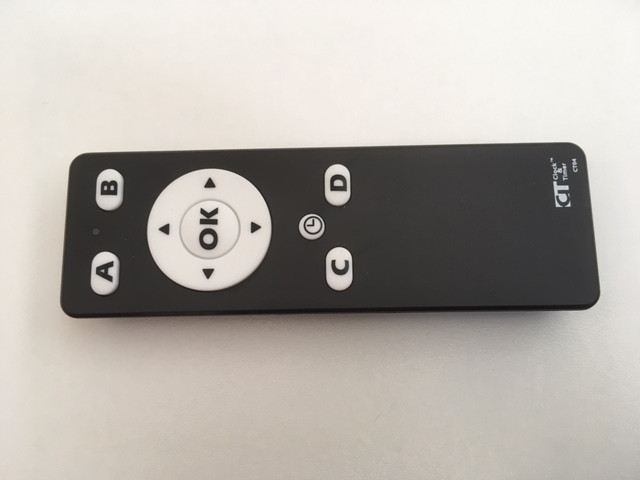

Congratulations on purchasing a digital timer from The Sydney Clock Company. Please read the following instructions which explain the setting / running functions. (NB: The remote controller must be kept in a dry, dustproof environment. Damage from moisture / dust etc, will not be covered under warranty.)
“B” - This button will change between the 5 brightness settings.
“L” – This is the setting mode button. Also the save data and exit setting mode.
“Up and Down” arrow buttons – adjusts digits up or down.
“Left and Right” arrow buttons – move the blinking digits. Maximum value : 999:23:59:59
Follow these instructions to set a new countdown value - FUNCTION :
Setting a new Countdown Value Push the “L” button
1/This is the TARGET DATE SETTING - the individual digits will start to flash. The year digit will start blinking and timer will display “F1 25 09 30”. (Indicates the FUTURE TIME/target date: Sep 30, 2025)YY:MM:DD. Push the arrow buttons to set. Then push the “L” button.
2/ This is the TARGET TIME SETTING - the individual digits will start to flash. The hour digit will start blinking and timer will display “F2 23 59 59” (indicates target time 23:59:59)HH:MM:SS. Push the arrow buttons to set. Then push the “L” button.
3/ This is the CURRENT DATE SETTING - the individual digits will start to flash. The year digit will start blinking and timer will display n1 22 11 08” (indicates current date Nov 8, 2022 YY:MM:DD. Push the arrow buttons to set. Then push the “L” button.
4/ This is the CURRENT TIME SETTING - the individual digits will start to flash. The hour digit will start blinking and timer will display n2 09 30 59” (indicates current time is 09:30:59)HH:MM:SS. Push the arrow buttons to set. Then push the “L” button.
The timer will automatically calculate the remaining time and display in DDD HH MM SS format.
For service, or if you require any assistance, please contact us on 02 4861 7265 or email us on info@sydneyclockco.com.au
